Combined metal-plastic container for accumulation, storage and use of hydrogen

Design of metal-plastic container for accumulation, storage and use of hydrogen: 1 – light, thin-walled, welded sealed casing: 1.1. – shell; 1.2 – bottom with hole for neck; 1.3 - гblind bottom; 1.4 - neck. 2 - composite forced casing.

Areas of applications

The combined metal-plastic containers for accumulation, storage and use of hydrogen are supposed to apply at the facilities of hydrogen power engineering in the aircraft and rocket building for equipping the aircraft and rocket engineering of different purposes.

Brief description

The project is aimed at creating the combined containers for accumulation, storage and use of hydrogen. The task of the work is the creation of high-strength fiber composite material for reinforcement of welded containers, development of technologies for manufacture of thin-walled body, determination of properties of the produced composite, welded joints and manufactured combined container.

Expected properties

The body of austenitic steel will provide a proper sealing during storage of hydrogen and the outer casing will provide resistance against fracture of inner pressure. The high strength and relatively low mass of high strength fibers in the composition of the outer casing contribute to reduction in thickness of the wall of the steel body, total weight of the combined container and improvement of its reliability and serviceability.

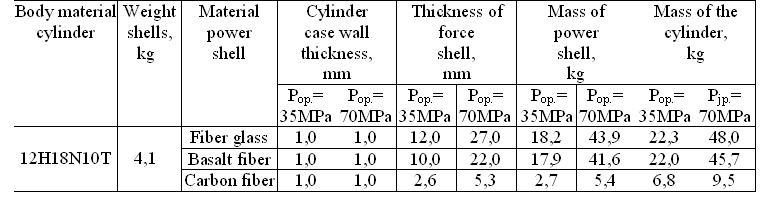

Table 1 - Mass indicators of high-pressure cylinders with a capacity of 30 liters with power shells of different fiber materials power

Advantages

Low mass and size index (m/V) and capability of accumulation and storage of hydrogen under the pressure of up to 35-75 MPa.

Expected results

Production of containers for accumulation, storage and use of hydrogen:
"ECD Ovonics" (USA),
"HERA Hydrogen Storage Systems" (Canada),
"Dynetek" (Canada),
"Millenium Cell" (USA),
"Euro India Cylinders Ltd".

Project development

The technologies were developed and the production of light metal-plastic cylinders for accumulation, storage, transportation and use of compressed gases, with the welded metal body reinforced by composite material was prepared.

Contact information

Executing : E.O.Paton Electric Welding Institute, National Academy of Sciences of Ukraine

Project 18 «Development of combined high-strength containers for accumulation and storage of hydrogen».

Project leader:

Savitsky Mikhail M.

Head of Department,
Doctor of Technical Sciences,
senior staff scientist

Tel. +38 044 200-17-39,
Fax. +38 044 205-23-21

Е-mail: sav@paton.kiev.ua

Е-mail: sam961@ukr.net

---
